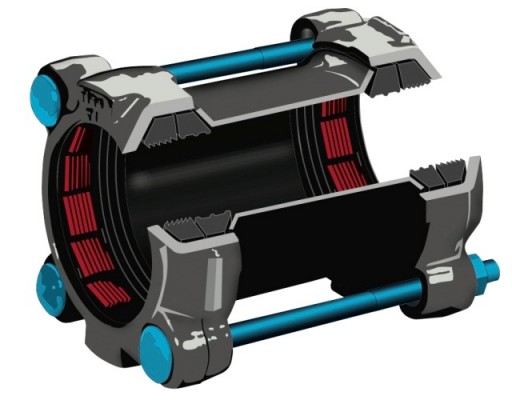

AquaGrip Coupling

Product Features Downloads
  • Slip-on coupling without centre stop or obstruction making it easier to make repairs to existing pipelines
  • No need to dismantle products to install
  • Same size bolt throughout range means just one torque wrench for all pipe sizes
  • Substantial axial pipe adjustment up to 50mm- ideal for making pipe and valve insertions into existing lines. No need for precise cutting of the pipes or for machined pipe ends
  • Versatile range. Straight couplings for simple, convenient repairs, or new lay connections. Flange adaptors to introduce valves and flanged fittings or connect to existing flanged pipework
  • AquaGrip has been tested and found to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 for England and Wales, the Water Byelaws 2000 Scotland and the Water Regulations Northern Ireland
  • Supplied complete with liners for PE pipes
  • Flange adaptors and straight couplings designed to the full Type 1 performance requirements of WIS 4-24-01
Pipe Materials
PE
Applications
Water

1 Exceptional Grip

The combination of the acetal grippers and separate internal support liner gives AquaGrip an end load gripping capability of Type 1 to WIS 4-24-01. This means that the joint is stronger than the PE pipe itself.

Viking Johnson AquaGrip F&B Exceptional Grip

2 Designed to Last

The sleeve or body are fully coated in black Rilsan Nylon 11 which has excellent resistance to impact, abrasion, weathering and chemicals as well as good thermal stability and flexibility to accommodate for rough site handling. It is also WRAS listed

Viking Johnson AquaGrip F&B Designed to last

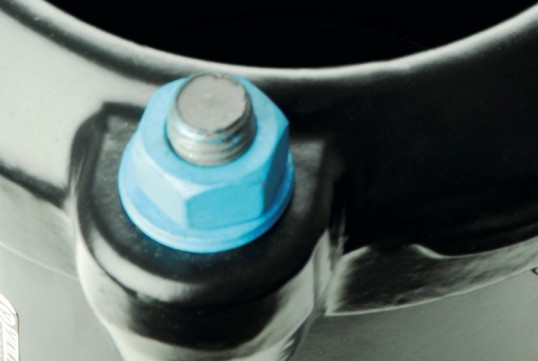

3 Corrosion Resistance

Sheraplex coated nuts & bolts offer excellent corrosion resistance and eliminates galling of coating in threads allowing repeated dismantling and installation of products if required.

Viking Johnson AquaGrip F&B Corrosion Resistance

4 Unique Gasket

The EPDM gasket (Compound 80 IRHD Grade E) is suitable for water and sewage applications between a temperature range of -10°C to 40°C

Viking Johnson AquaGrip F&B Unique Gasket
