MaxiThread End Cap

Product Features Downloads
  • Design life expectancy of 50 years, established by rigorous 'Accelerated Age Testing' which subjects product to working pressure at 80°C for 1000 hours.
  • Wide tolerances permit lower stock holding.
  • Sizes from DN40 to DN300.
  • All models accommodate angularity between pipes which allows for normal pipeline movement caused by ground settlement. Couplings and reducing couplings allowing for 6° total angular deflection (3° total on the flange adaptors).
  • A rigorous bolt torque test is completed to confirm that the bolt, end ring and adaptor body are capable of withstanding bolt over-tightening to 1.5 times maximum recommended torque.
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel PE HEP30 GRP ABS Concrete Copper
Applications
Water Gas

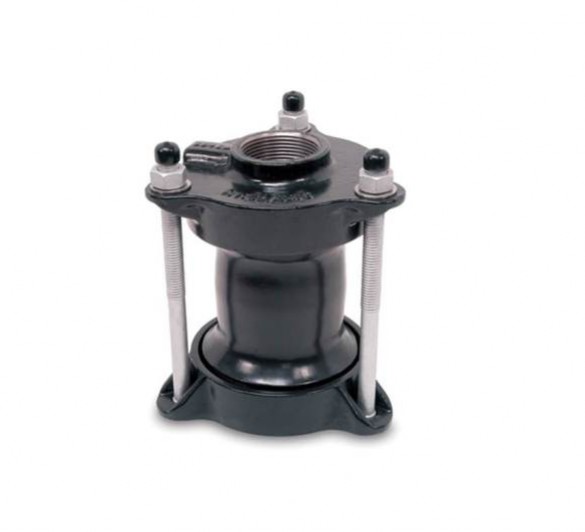

1 Connects to Threaded Pipe

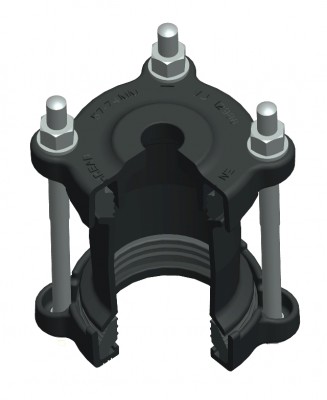

The MaxiThread threaded end cap is designed to provide a connection between plain-ended and threaded pipe. Outlets are available with 1", 1.25" and 1.5" BSP threads. It is constructed with a MaxFit coupling body with one standard end ring and one threaded end ring.
