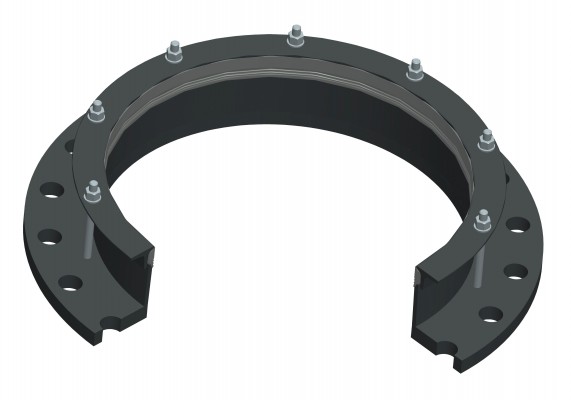

Large Diameter Flange Adaptors

Product Features Downloads
  • Couplings can absorb up to 10mm expansion and contraction,flange adaptors up to 5mm which allows for movement on bridge crossings, in chambers and pump stations. Often eliminates the need for special expansion joints.
  • The standard finish for all Viking Johnson products is black Rilsan Nylon 11, which is highly resistant to impact, corrosion, abrasion and chemical attack. However, other coatings such as shopcoat, hot dip galvanising, zinc spray and epoxy coating can be supplied as required.
  • Couplings can offer up to 6° of angular deflection, flange adaptors 3° - to allow for the connection of misaligned pipes; take up ground settlement at structures; lay pipes to large radius bends.
  • Flange adaptors are often used to permit dismantling of valves in flanged pipe systems
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel HEP30 ABS Concrete
Applications
Water Gas Industrial

1 Simple to Fit

Simple installation in any weather and trench conditions,even underwater!

2 Long Life Expectancy

Elastomeric sealing gaskets are designed to have at least a 50 year lifespan

3 Corrosion Protection

Metal components are coated with Rilsan Nylon 11 which is WRAS approved for use with potable water. The nuts and bolts are Sheraplex coated to WIS 4-52-03, offering long term protection against corrosion, impact and abrasion to ensure continued reliable protection to corrosion, impact and abrasion and therefore ensures continued reliable performance.

Select your language

  • Large Diameter Brochure 011024 THUMBNAIL

    Large Diameter Brochure

    01-10-2024 - Issue 8

    Download

Data Sheets

  • 1. Large Diameter Flange Adaptors OD355 - 1016mm to BS EN 1092-1 PN10 Drilling - 01-10-2024 - Issue 8 Download > (PDF)
  • 2. Large Diameter Flange Adaptors OD1019 - 1668mm to BS EN 1092-1 PN10 Drilling - 01-10-2024 - Issue 8 Download > (PDF)
  • 3. Large Diameter Flange Adaptors OD355 - 813mm to BS EN 1092-1 PN16 Drilling - 01-10-2024 - Issue 8 Download > (PDF)
  • 4. Large Diameter Flange Adaptors OD816 - 1668mm to BS EN 1092-1 PN16 Drilling - 01-10-2024 - Issue 8 Download > (PDF)
  • 5. Large Diameter Flange Adaptors OD355 - 945mm to BS EN 1092-1 PN25 Drilling - 01-10-2024 - Issue 8 Download > (PDF)
  • 6. Large Diameter Flange Adaptors OD1016 - 1255mm to BS EN 1092-1 PN25 Drilling - 01-10-2024 - Issue 8 Download > (PDF)
  • 7. Large Diameter Online Enquiry / Order Form

    Complete this online form fillable PDF. Press send and save once complete to assist with a quotation for Large Diameter products.

    Download > (PDF)

Fitting Instruction

General Videos

  • Viking Johnson Multi Million Pound Investment
    Crane BS&U has completed a multi-million pound investment in its Viking Johnson factory at Hitchin that will strengthen its business model to deliver enhanced customer benefits in terms of 'Best in Class' service and products. The investment has supported the creation of an entire linked value stream from the supply of raw materials through to the final manufacture of the products resulting in vastly improved lead times, product availability and plant flexibility.
    View the Video

    Viking Johnson Multi Million Pound Investment

CAD Drawings

ZIP files contain DWG, DXF, IGS, STP & PDF file types. ST = Steel or Coated Steel. DI = Ductile Iron
