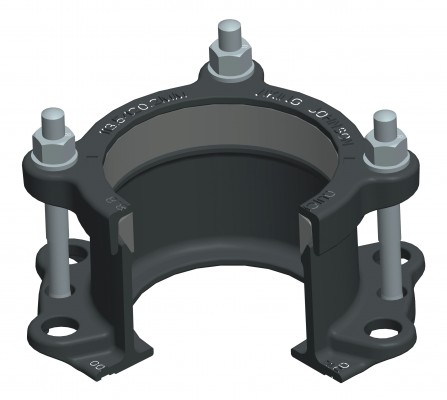

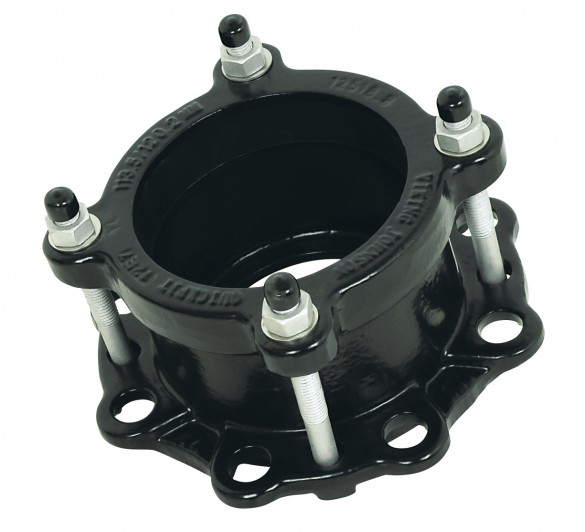

QuickFit Flange Adaptors

Product Features Downloads
  • QuickFit products accommodate angular deflection between pipes. This makes installation easy and allows pipeline movement, such as ground settlement.
  • Long radius curves can also be accommodated, avoiding the need for special fittings with couplings up to 6º and flange adaptors to 3º.
  • QuickFit couplings are capable of accommodating 10mm of expansion/contraction per fitting, flange adaptors 5mm.This reduces the need for supplementary expansion joints or bellows.
  • No need for specialist tools – just a 19mm A/F deep reach socket and torque wrench.
  • All cast QuickFit flange adaptors are supplied as standard with an extended sealing face, and are suitable for use with wafer style (butterfly) valves.
  • Fabricated flange adaptors can be supplied with either an extended sealing face or clear bore option.
Pipe Materials
Steel Ductile Iron Cast Iron Stainless Steel ABS Concrete Asbestos Cement Copper PVC HEP30
Applications
Water Gas Industrial

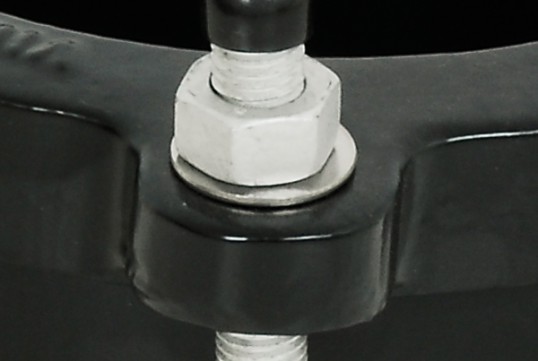

1 Simple to Fit

Captive, non-rotating bolt heads require a single spanner/ torque wrench. Installation is simple with one bolt size (M12) and one bolt torque (55-65Nm) for the majority of pipe materials

QuickFit CloseUps4 Viking Johnson

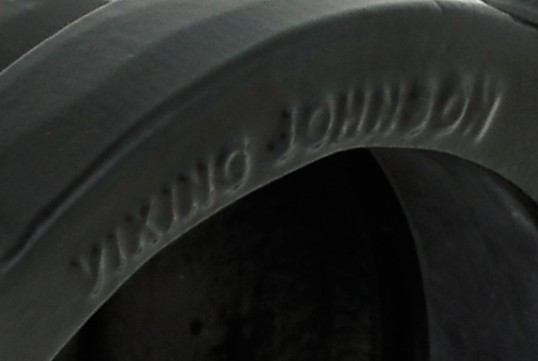

2 Excellent Corrosion Protection

Metal components are coated with Rilsan Nylon 11 which is WRAS approved for use with potable water. The nuts and bolts are Sheraplex coated to WIS 4-52-03, offering long term protection against corrosion, impact and abrasion to ensure continued reliable performance.

QuickFit CloseUps3 Viking Johnson

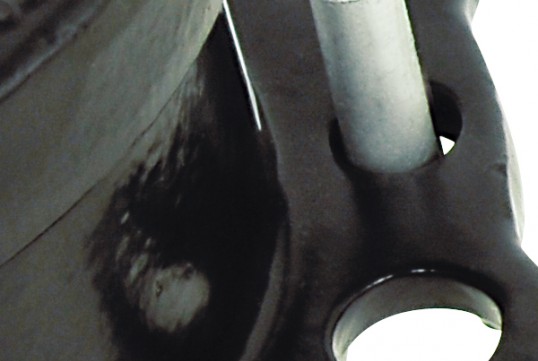

3 Flexible Fit

QuickFit flange adaptors are supplied as standard with flanges drilled to BS EN 1092 PN10 and PN16. Other options are available - see Specification Page for details of fabricated products available

QuickFit CloseUps1 Viking Johnson

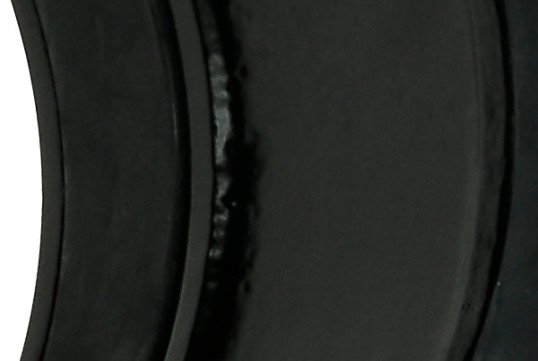

4 Quick by Name

All QuickFit products are pre-assembled allowing quick and efficient installation, even in the most difficult of conditions without the need for on-site dismantling.

QuickFit CloseUps2 Viking Johnson
