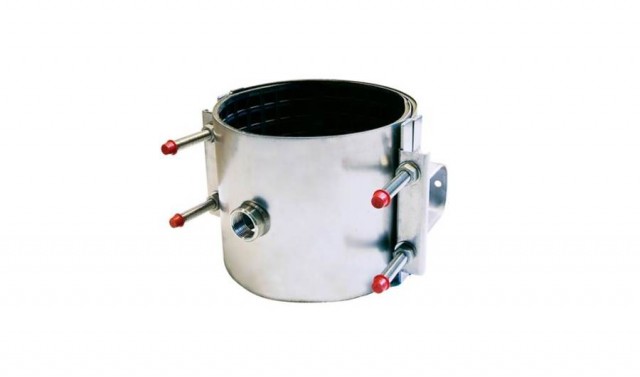

HandiTap

Product Features Downloads
  • HandiTap will seal corrosion holes, impact damage and longitudinal cracks
  • Reduced stock holding due to wide tolerance in range
  • Taps are available in single double and triple band options - as 1 part (up to 10mm tolerance), 2 parts (up to 20mm tolerance), 3 parts (up to 30mm tolerance)
  • Various female BSP outlet options available
  • No specialist equipment required, standard under-pressure equipment can be used with HandiTap
  • No costly mains shutdown with HandiTap, allowing branch connections whilst under pressure
  • Permanent repair for many types of pipe damage from DN50 (2”) to DN1000 (24”)
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel PE HEP30 GRP ABS Clay Concrete Copper Lead
Applications
Water Gas

1 Corrosion Protection

Components constructed of fully-passivated stainless steel (Grade 304) with no need for any further protection on-site (e.g. on-site wrapping). Bolts are secured with Dacromet coated nuts to prevent galling.

Viking Johnson HandiRange Protection

2 Easy Installation

Rapid installation in poor site conditions, made easy with simple, 'flip-over' action and self retaining bolts.

Viking Johnson HandiRange Easy Installation

3 First Time Seal

All encompassing waffle gasket offers a guarenteed reliable seal even on badly corroded pipes.

Viking Johnson HandiRange Seal

Select your language

  • HANDIRANGE Brochure 011024 THUMBNAIL

    HandiRange Brochure

    01-10-2024 - Issue 8

    Download

Data Sheets

  • 1. HandiClamp HandiTap Double Band Datasheet - 01-10-2024 - Issue 8 Download > (PDF)
  • 2. HandiClamp HandiTap Single Band Datasheet - 01-10-2024 - Issue 8 Download > (PDF)
  • 3. HandiClamp HandiTap Triple Band Datasheet - 01-10-2024 - Issue 8 Download > (PDF)

Fitting Instructions
