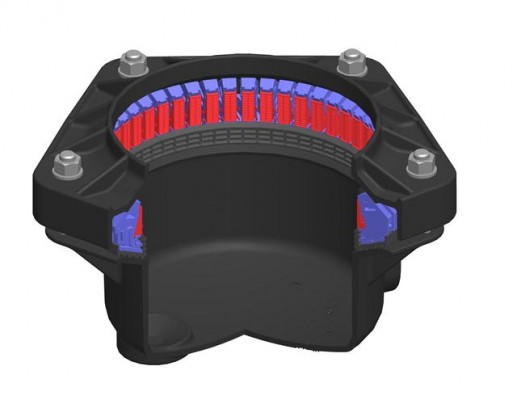

UltraGrip End Cap

Product Features Downloads
  • High level of performance in both water and gas applications
  • Increased diameter range and wide tolerance delivers a reduction in stock holding costs
  • Gripping product can be converted to non-gripping flexible product by removing grippers, to permit axial movement
  • Available in Nitrile for gas and EPDM for water, materials approved to WRAS as well as KTW and DVGW W270 (11.2007) for potable water applications
  • Reversible captive bolts for quick and easy installation
  • New design based on proven technology to deliver total peace of mind
  • Sizes from DN40 to DN 300
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement PE HEP30 GRP
Applications
Water Gas

1 Intelligent Carriers

The carriers can accommodate high tolerances of pipe outside diameters - up to 44mm, with interlocking "spring" effect ensuring gasket & grippers retract so product slips over top tolerance pipe without interference.

Viking Johnson UltraGrip Intelligent Carriers

2 Unique UltraGrip Sealing Gasket

Specially profiled gasket ensures full seal even on scored and corroded pipes. Tested on "knurled and grooved pipe", as detailed in "Specification for Methods of Repairing Leaking Ferrous Gas Mains Part 4: Pipe Repair Clamps, Split Collars and Under Pressure Branch Connections (GIS/LC8-4):2006", to verify the sealing capability on severely corroded and pitted pipe in low pressure gas applications.

Viking Johnson UltraGrip Sealing Gasket

3 Simple to Fit

Captive bolt heads allow use of a single spanner to install.

Viking Johnson UltraGrip Simple to Fit

4 Progressive Gripping Mechanism

Increases its end load restraint capability as the internal pressure in the pipe increases. One gripper system suits all recommended pipe materials and offers full end load resistance at full angular deflection.

Viking Johnson UltraGrip Gripping
