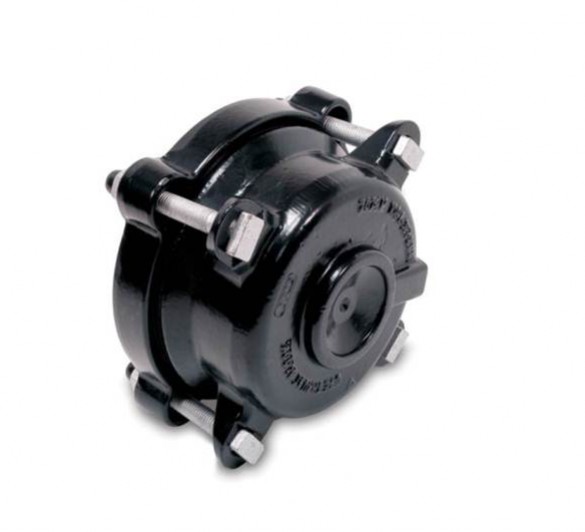

MaxiCap

Product Features Downloads
  • Design life expectancy of 50 years, established by rigorous 'Accelerated Age Testing' which subjects product to working pressure at 80°C for 1000 hours.
  • Wide tolerances permit lower stock holding.
  • All models accommodate angularity between pipes which allows for normal pipeline movement caused by ground settlement. Couplings and reducing couplings allowing for 6° total angular deflection (3° total on the flange adaptors).
  • A rigorous bolt torque test is completed to confirm that the bolt, end ring and adaptor body are capable of withstanding bolt over-tightening to 1.5 times maximum recommended torque.
  • Sizes from DN40 -DN 300.
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel PE HEP30 GRP ABS Concrete Copper
Applications
Water Gas

1 Dual Purpose

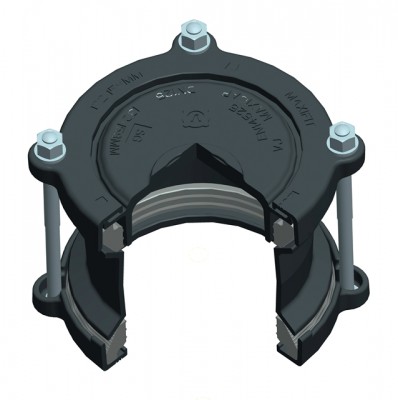

The MaxiCap end cap fits inside the end ring to the MaxiFit and can be drilled and tapped to form an outlet (up to 2" depending on size).

2 Enables Testing On-Site

Converts product to cap end for testing and blanking off, although the assembly must have suitable external support to prevent movement under pressure.
