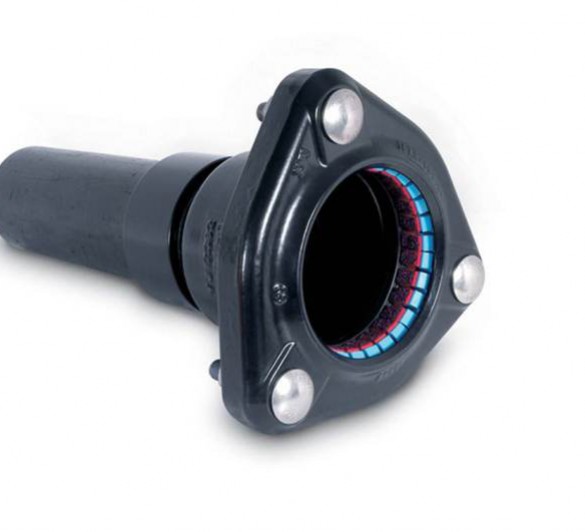

UltraGrip Pecatadaptor

Product Features Downloads
  • High level of performance in both water and gas applications
  • Increased diameter range and wide tolerance delivers a reduction in stock holding costs
  • Gripping product can be converted to non-gripping flexible product by removing grippers, to permit axial movement
  • Available in Nitrile for gas and EPDM for water, materials approved to WRAS as well as KTW and DVGW W270 (11.2007) for potable water applications
  • Reversible captive bolts for quick and easy installation
  • New design based on proven technology to deliver total peace of mind
  • Sizes from DN80-DN 200
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement PE HEP30 GRP
Applications
Water Gas

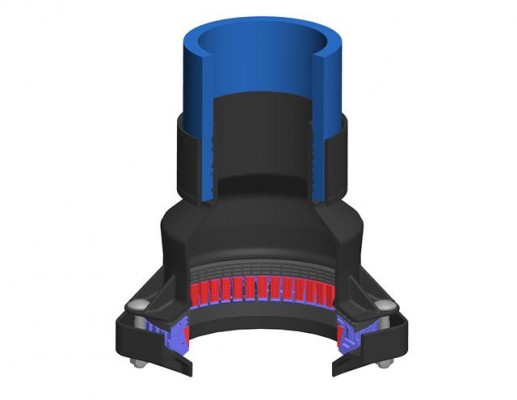

1 Intelligent Carriers

The carriers can accommodate high tolerances of pipe outside diameters - up to 44mm, with interlocking "spring" effect ensuring gasket & grippers retract so product slips over top tolerance pipe without interference.

Viking Johnson UltraGrip Intelligent Carriers

2 Unique UltraGrip Sealing Gasket

Specially profiled gasket ensures full seal even on scored and corroded pipes. Tested on "knurled and grooved pipe", as detailed in "Specification for Methods of Repairing Leaking Ferrous Gas Mains Part 4: Pipe Repair Clamps, Split Collars and Under Pressure Branch Connections (GIS/LC8-4):2006", to verify the sealing capability on severely corroded and pitted pipe in low pressure gas applications.

Viking Johnson UltraGrip Sealing Gasket

3 Simple to Fit

Captive bolt heads allow use of a single spanner to install.

Viking Johnson UltraGrip Simple to Fit

4 Progressive Gripping Mechanism

Increases its end load restraint capability as the internal pressure in the pipe increases. One gripper system suits all recommended pipe materials and offers full end load resistance at full angular deflection.

Viking Johnson UltraGrip Gripping

Select your language

  • UltraGrip Brochure 011024 THUMBNAIL

    UltraGrip Brochure DN40 - DN600

    01-10-2024 - Issue 8

    Download

Data Sheets

  • 1. UltraGrip Pecatadaptors & End Caps Datasheet - 01-10-2024 - Issue 8 Download > (PDF)

Fitting Instructions

  • ngug end pecat red coup cover UltraGrip Reducing Couplings, Pecatadaptors & End Caps Fitting Instructions DN40 to DN600
    Download
  • UltraGrip FAQ UltraGrip FAQs
    Download

General Videos

  • Viking Johnson Next Generation UltraGrip
    The Next Generation UltraGrip is a fully restrained coupling solution for water and gas applications is now available in diameters up to 400mm. New enhanced design features also provide the ultimate sealing and gripping solution on all pipe surface conditions and recommended materials.
    View the Video

    Viking Johnson Next Generation UltraGrip

  • Viking Johnson wins Belarus Award for NGUG
    In November 2011, Viking Johnson together with it's Belarusian distributor, Setcom, won the acclaimed 'Best Building Product of the Year' in Belarus for it's Next Generation UltraGrip range. The range was entered into the 'Pipeline Element' category which included tough competition.
    View the Video

    Viking Johnson wins Belarus Award for NGUG
