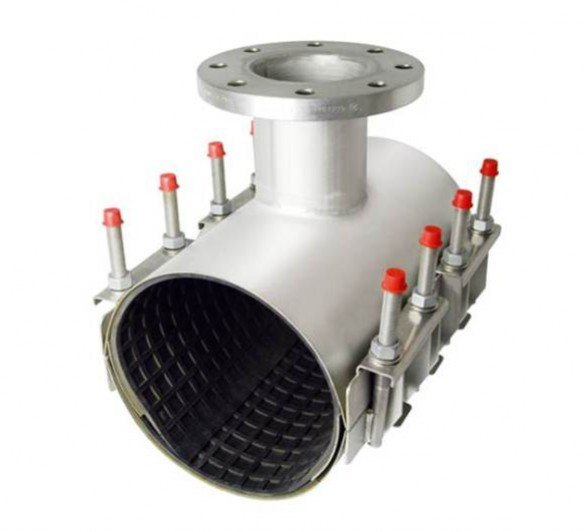

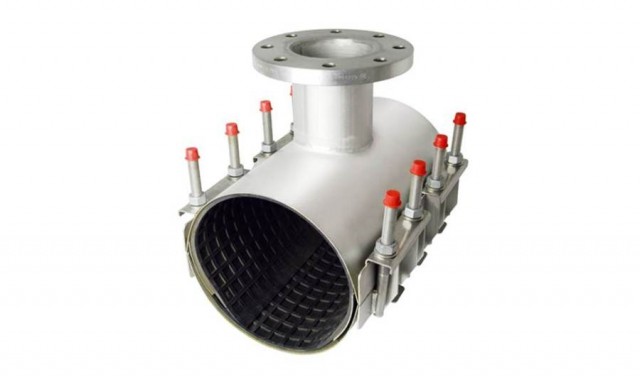

HandiTee

Product Features Downloads
  • HandiTee will seal corrosion holes, impact damage and longitudinal cracks
  • HandiTee is lightweight & easy to install so it is ideal for making simple flanged connections on pressurised pipes
  • No specialist equipment required, standard under-pressure equipment can be used with HandiTee
  • No costly mains shutdown with HandiTee, allowing branch connections whilst under pressure
  • Repair for many types of pipe damage from DN80 (3”) to DN250 (10”)
Pipe Materials
Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel PE HEP30 GRP ABS Clay Concrete Copper Lead
Applications
Water Gas

1 Corrosion Protection

Components constructed of fully-passivated stainless steel (Grade 304) with no need for any further protection on-site (e.g. on-site wrapping). Bolts are secured with Dacromet coated nuts to prevent galling.

Viking Johnson HandiRange Protection

2 Easy Installation

Rapid installation in poor site conditions, made easy with simple, 'flip-over' action and self retaining bolts.

Viking Johnson HandiRange Easy Installation

3 First Time Seal

All encompassing waffle gasket offers a guarenteed reliable seal even on badly corroded pipes.

Viking Johnson HandiRange Seal

Select your language

  • HANDIRANGE Brochure 011024 THUMBNAIL

    HandiRange Brochure

    01-10-2024 - Issue 8

    Download

Data Sheets

  • 1. HandiTee DN80 to DN250 Clamp Length 300 to 500mm Datasheet - 01-10-2024 - Issue 8 Download > (PDF)
  • 2. HandiTee DN80 to DN250 Clamp Length 600 to 1000mm Datasheet - 01-10-2024 - Issue 8 Download > (PDF)
  • 3. HandiTee DN300 to DN750 Clamp Length 300 to 500mm Datasheet - 01-10-2024 - Issue 8 Download > (PDF)
  • 4. HandiTee DN300 to DN750 Clamp Length 600 to 1000mm Datasheet - 01-10-2024 - Issue 8 Download > (PDF)
